Cold Storage Energy Efficiency: Key Considerations

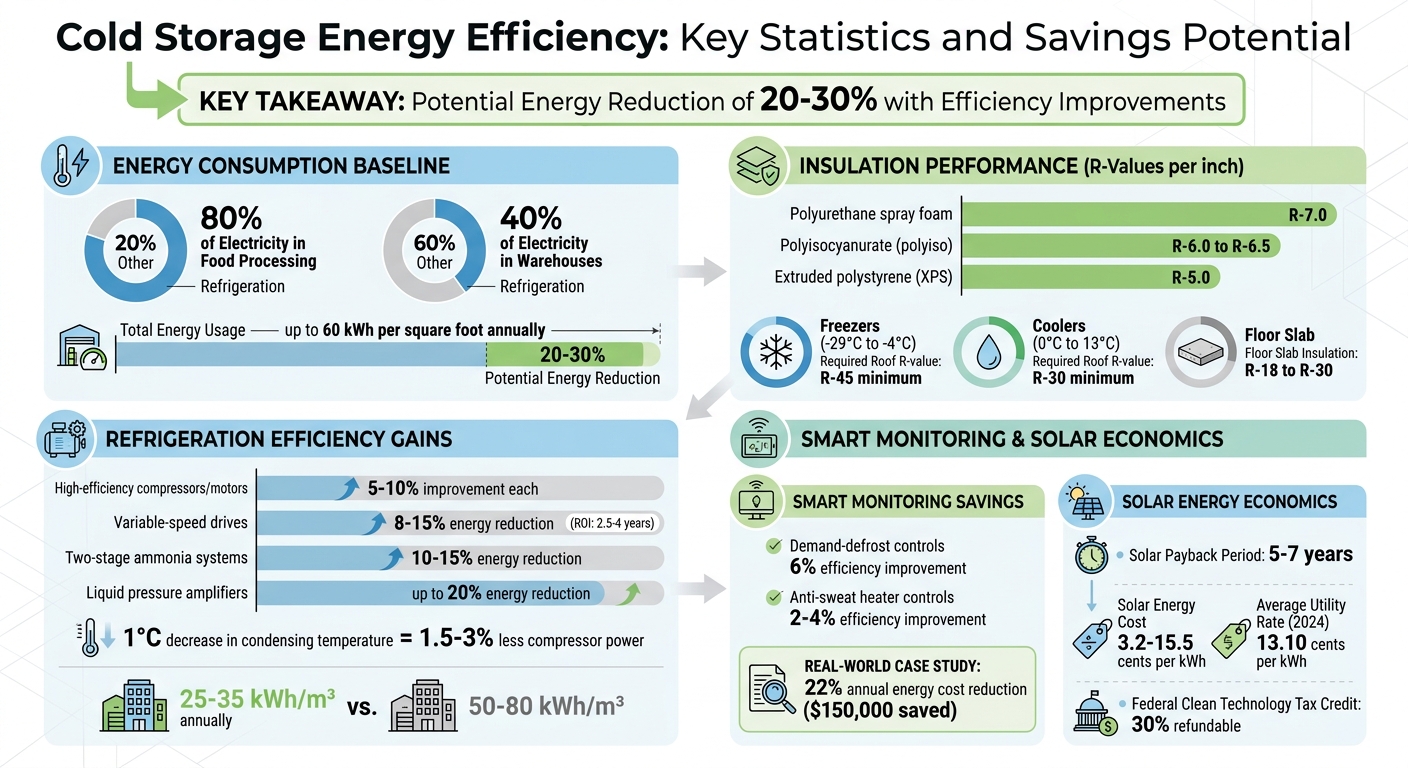

Cold storage facilities consume significant energy, with refrigeration accounting for up to 80% of electricity in food processing and 40% in warehouses. This drives high costs and impacts operations, especially in maintaining sub-zero temperatures. However, improving energy efficiency can cut energy use by 20–30% or more. Here's how:

• Insulation: Use materials like polyurethane spray foam or polyisocyanurate (polyiso) for high R-values. Sealing gaps and using vapour barriers prevent heat infiltration and condensation.
• Refrigeration Systems: Upgrade to high-efficiency compressors, variable-speed drives, and natural refrigerants like ammonia or CO₂. These changes reduce energy consumption by up to 20%.
• Smart Monitoring: Sensors and automation help identify inefficiencies, enabling condition-based maintenance and reducing waste.
• Renewable Energy: Solar panels with net metering and battery storage lower grid reliance, saving costs and boosting resilience.
• Best Practices: Optimizing layouts, minimizing door openings, and maintaining equipment prevent unnecessary energy loss.

Cold Storage Trends Master Class: Improving energy efficiency in cold storage warehouses

sbb-itb-1862e65

Insulation and Building Envelope Solutions

An effective thermal barrier can limit heat gain to about 8–10 BTU/hr per square foot, which helps reduce compressor strain and operating expenses. However, when insulation is inadequate or the building envelope allows air leaks, energy costs can climb, and overall efficiency takes a hit.

Insulation Materials for Cold Storage

Choosing the right insulation involves weighing thermal efficiency, moisture resistance, and cost. For instance, polyurethane spray foam boasts an impressive R-value of up to 7.0 per inch, but it requires specialized tools and can increase labour costs. Meanwhile, polyisocyanurate (polyiso) offers a slightly lower R-value of 6.0 to 6.5 per inch but is easier to integrate into insulated metal panels, making it a common choice for walls and roofs.

"To get the biggest bang for your buck, polyiso provides superior thermal performance with quick, simple, and durable installation procedures".

When it comes to floor slabs and piping, extruded polystyrene (XPS) is a dependable option, offering an R-value of about 5.0 per inch along with good moisture resistance. For those on a tighter budget, expanded polystyrene (EPS) is the most economical choice, though its higher water vapour permeability means it may absorb moisture over time, reducing its thermal efficiency. In areas with high moisture levels, cellular glass is a standout due to its rigidity and excellent moisture resistance, though its R-value is moderate.

It’s also worth noting that closed-cell foams like polyiso, XPS, and polyurethane can experience "thermal drift" during their first two years, as insulating gases are replaced by air. Adding foil or plastic facings to rigid foam panels can slow this process and even provide a radiant barrier.

For freezers operating between –29°C and –4°C (–20°F to 25°F), roof insulation should achieve a minimum R-value of 45. Facilities maintaining temperatures from 0°C to 13°C (32°F to 55°F) require at least R-30. Concrete floor slabs are typically insulated to R-18 to R-30. Additionally, polyiso and polyurethane panels are 30% to 40% more thermally efficient for a given thickness compared to EPS, allowing for thinner walls and increased interior space.

Ultimately, while choosing the right insulation is key, ensuring an airtight building envelope is equally important to maximize performance.

Reducing Air Infiltration

Even the best insulation won’t perform well if warm, humid air seeps through gaps in the building envelope. Air leaks allow heat to enter through convection, forcing refrigeration systems to work harder. When warm air meets cold surfaces, condensation can occur, potentially leading to ice buildup, which can degrade insulation and cause corrosion under insulation (CUI).

"Insulation helps prevent this [condensation] by keeping surface temperatures above the dew point of the surrounding air".

To maintain an airtight envelope, every penetration, joint, and termination should be sealed with compatible vapour barriers and adhesives. High-risk areas - such as dock doors, loading bays, valve groups, and insulation terminations - should be inspected regularly to catch and fix failed seals before moisture becomes an issue. Insulation should always be applied to clean, dry, and smooth surfaces. In high-traffic areas, protective jacketing can shield insulation from UV exposure and physical damage.

Energy-Efficient Refrigeration Systems

Once the building envelope is properly sealed and insulated, the next priority is improving refrigeration efficiency. Refrigeration typically accounts for 40–70% of total energy use, making it the largest energy consumer in such facilities. The choice of equipment and control strategies plays a critical role in reducing long-term operating costs. Leading facilities consume between 25–35 kWh/m³ annually, compared to the 50–80 kWh/m³ used by average systems. These upgrades also prepare facilities for advanced automation and monitoring systems.

High-Efficiency Refrigeration Equipment

Modern refrigeration systems incorporate advanced components that significantly cut energy use. For instance, high-efficiency compressors, evaporator fan motors, and condenser fan motors can each improve energy efficiency by 5% to 10%. When combined, these upgrades deliver noticeable reductions in operating costs. Adding variable-speed drives to compressors can further reduce energy consumption by 8–15%, with a return on investment typically achieved within 2.5 to 4 years.

Natural refrigerants, like ammonia (NH₃) and carbon dioxide (CO₂), stand out for their strong thermodynamic properties and lower global warming potential. As Mark Gronowski explains:

"Ammonia refrigeration systems, in particular, are known for their energy efficiency and favourable thermodynamic properties".

For larger operations, two-stage ammonia systems with intermediate coolers can cut energy use by 10–15% compared to single-stage systems. Liquid pressure amplifiers offer even more savings, reducing energy consumption by up to 20%.

In Canada, the climate makes floating head pressure controls particularly effective. These systems adjust head pressure based on outdoor conditions, reducing compressor workload, extending equipment life, and lowering energy use by 3–10%. Every 1°C decrease in condensing temperature reduces compressor power consumption by 1.5–3%. Additionally, electronic expansion valves (EEVs) provide precise refrigerant flow control, allowing systems to adapt efficiently to varying load demands.

Smart Monitoring and Automation

Efficiency gains from equipment upgrades can be amplified through smart monitoring and automation. By shifting refrigeration management from reactive to proactive, facilities can avoid unnecessary energy waste. Predictive performance monitoring uses data from sensors - such as suction and discharge pressures and motor currents - to establish a baseline Coefficient of Performance (COP). When efficiency drops by around 6%, automated alerts prompt maintenance before energy losses or temperature fluctuations become significant. This approach replaces fixed maintenance schedules with condition-based maintenance, ensuring tasks like condenser cleaning are performed only when needed.

A real-world example comes from a 180,000-square-foot cold storage facility in the U.S. Midwest. In April 2026, the facility implemented OxMaint's energy and ESG reporting module. By connecting sensor data to maintenance workflows, it cut annual energy costs by 22%, saving $150,000. Key actions included identifying three underperforming compressors through COP trends, saving $62,000 annually, and adopting a condition-based schedule for condenser cleaning, saving $38,000 annually. Over 18 months, the facility reported zero temperature exceedances.

Dr. Rachel Ng from the Cold Chain Logistics Consortium highlights the importance of bridging the gap between sensor data and action:

"What OxMaint changes is the gap between sensor data and maintenance action. That gap - between a condenser running 12°C above clean setpoint and the work order that gets a technician with a pressure washer in front of that condenser - is where most cold storage energy waste lives."

Other tools, like demand-defrost controls, initiate defrost cycles only when frost accumulation, temperature drops, or humidity levels warrant it, improving energy efficiency by up to 6%. Anti-sweat heater controls, which deactivate heaters during dry conditions using humidity sensors, can improve system efficiency by 2–4%. To fully leverage these technologies, facilities should install sensors for suction and discharge pressures, discharge temperatures on condensers, and continuous zone temperature logging to monitor real-time system performance.

Renewable Energy Integration

Renewable energy is becoming a go-to strategy for cost savings in cold storage facilities, complementing earlier system and building upgrades. With electricity usage reaching up to 60 kWh per square foot annually and refrigeration consuming over 70% of that energy, the savings potential is massive. Solar panels combined with battery storage are now widely adopted to cut grid reliance and manage fluctuating utility rates.

Solar Panels for Cold Storage Facilities

Cold storage buildings are ideal for solar panel installations, thanks to their expansive, flat rooftops. Even better, solar energy production peaks in summer - right when refrigeration needs are highest. This natural alignment ensures that every kilowatt of solar energy is put to good use.

Take St. Davids Cold Storage in Ontario’s Niagara Region as an example. Between 2020 and 2025, they rolled out a three-phase solar project in partnership with Informed Energy. Phase 1 involved installing a 500 kW AC system on their original building. Phase 2 (2022–2023) added another 700 kW AC to a second building. Finally, Phase 3 (2024–2025) will expand the system further, resulting in a 1.2 MW AC / 1.476 MW DC net-metered setup. This design allows the facility to generate surplus energy in the summer and apply those credits during winter months.

Net metering is key to making solar energy financially appealing in Canada. Many provinces allow businesses to "bank" excess electricity produced during high-output months and use it later to offset costs in low-production periods. The average payback period for solar systems in this industry ranges from 5 to 7 years. With commercial solar energy prices between 3.2 and 15.5 cents per kWh, compared to the 2024 average utility rate of 13.10 cents per kWh, the financial case is strong. Additionally, the federal government offers a 30% refundable Clean Technology Investment Tax Credit for solar and storage system costs.

Energy storage systems make these solar setups even more effective.

Battery Storage Systems

Battery storage systems are game-changers for facilities using solar power. These systems store surplus solar energy during the day and release it during costly evening hours, a practice known as peak shaving. This approach helps facilities sidestep expensive Time of Use (TOU) rates, which can drive up monthly energy bills.

Beyond cost savings, battery storage boosts resilience. It supports microgrid operations during power outages, ensuring the cold chain remains intact. Thermal Energy Storage (TES) systems, which use phase change materials, can even store "cold" directly. This allows refrigeration systems to shut down for up to 13 hours while maintaining stable temperatures.

For example, in September 2025, Viking Cold Solutions teamed up with the San Antonio Food Bank (SAFB) to install a TES system in their main freezer. Backed by the Global Cold Chain Alliance (GCCA), the system provided 865,000 BTUs of storage and saved 8,000 kWh per month. These savings enabled the food bank to redirect funds toward providing 70,000 additional meals. TES systems also offer an impressive levelized cost of energy (LCOE), sometimes less than 2 cents per kWh.

Best Practices for Temperature Control and Cost Reduction

Achieving energy savings in cold storage isn't just about upgrading to advanced equipment or tapping into renewable energy. To truly maximise savings, operational practices play a critical role. Even with the best technology in place, factors like poor facility layout, frequent door openings, and inefficient picking processes can lead to unnecessary energy consumption. These practices build upon earlier efficiency strategies to further cut costs.

Facility Layout Optimisation

A well-thought-out layout can significantly reduce energy loss. For instance, mapping out an efficient cold path ensures minimal door-open times and limits conditioned air loss during processing. High-density storage solutions, such as pallet systems, mobile racks, or automated storage and retrieval systems (ASRS), help reduce the volume that needs cooling. Separating products by temperature zones - frozen, chilled, or fresh - and scheduling staged picking windows can also enhance thermal stability.

Using a warehouse management system (WMS) to strategically position fast-moving SKUs reduces unnecessary travel and limits how long doors stay open. Additionally, installing fast-acting doors, strip curtains, and air curtains, along with repairing damaged seals, helps maintain thermal integrity by preventing moisture build-up and heat intrusion. Regular ice audits and floor checks are also essential for maintaining optimal energy efficiency.

However, even the best layout won't deliver results without consistent equipment upkeep.

Equipment Maintenance Schedules

Neglecting maintenance can lead to systems running inefficiently, which drives up energy costs. Issues like dirty evaporator coils can cause uneven air distribution, product freezing, or excessive moisture loss. Similarly, dirty condenser coils - especially in outdoor units - are a common culprit behind rising electricity bills.

A proactive maintenance schedule should include tasks like cleaning coils, inspecting compressors, checking for refrigerant leaks, calibrating sensors, and verifying defrost cycles. Sensors need to be placed in return airflow paths to prevent overcooling. Adjusting defrost cycles based on real-time load and humidity data can further optimise performance. Periodic thermal imaging surveys are also useful for identifying "hot spots" near dock doors or ageing panel joints, signalling potential insulation issues.

These efforts not only improve energy efficiency but also offer quick returns on investment, as shown in the table below:

Tactic	Primary Benefit	Typical Payback Window
Coil cleaning and sensor calibration	Better refrigeration efficiency and reliability	Immediate to 3 months
Defrost schedule tuning	Less energy waste and fewer temperature swings	1 to 6 months
Door seal replacement	Reduced infiltration and compressor workload	Immediate to 6 months
Energy monitoring dashboards	Quicker identification of inefficiencies	3 to 9 months

(Source:)

Conclusion

Improving energy efficiency in cold storage requires a well-rounded approach that combines insulation, refrigeration, operations, and renewable energy into a cohesive system. Advanced insulation can significantly reduce heat loads on refrigeration equipment, often paying for itself within a matter of months. Using high-efficiency refrigeration systems alongside smart monitoring tools helps identify issues like compressor surges or open doors before they lead to unnecessary costs. Additionally, renewable energy sources can help offset the high energy consumption of these facilities, even in extreme temperature conditions.

Operational practices are just as important as infrastructure investments. Simple measures like conducting door audits, fine-tuning defrost cycles, and implementing velocity-based slotting can lead to immediate energy savings without requiring major spending. Regular maintenance tasks - such as cleaning coils, calibrating sensors, and inspecting seals - turn routine upkeep into a proactive energy management strategy. Together, these operational habits and thoughtful design choices create a strong foundation for energy-efficient cold storage.

For businesses exploring cold storage options in Toronto and the Greater Toronto Area, site selection and facility design play a critical role in long-term energy performance. Michael Law of Lennard Commercial provides customized industrial real estate solutions for temperature-controlled operations, ensuring facilities are designed to support efficient energy use. Whether you're searching for a property with an energy-efficient layout or evaluating locations with renewable energy infrastructure, expert advice can help align your real estate choices with operational needs.

FAQs

What’s the fastest way to cut cold storage energy costs?

The fastest way to cut down on cold storage energy costs is to invest in energy-efficient refrigeration systems equipped with advanced controls. Features such as floating suction pressure control and variable frequency drives are designed to fine-tune cooling operations while reducing power use. Beyond lowering energy consumption, these technologies enhance overall system performance, translating to noticeable savings on energy bills.

How can I tell if insulation or air leaks are my main issue?

To pinpoint the issue, look for drafts or cold spots, as these often signal air leaks around windows, doors, or other openings. Use caulk or weather stripping to seal these gaps effectively. If you still notice uneven temperatures after sealing, the problem might be inadequate insulation. Check both areas thoroughly to improve energy efficiency and ensure proper cold storage conditions.

Is solar plus battery storage worth it for a cold storage facility in Canada?

Cold storage facilities in Canada often face high energy demands, making solar energy paired with battery storage a smart investment. Solar panels help cut electricity costs by generating power during daylight hours, while batteries store excess energy for use at night or when the sun isn’t shining. Together, these technologies boost energy reliability, reduce dependence on the grid, and help lower operating expenses. It's a practical solution for facilities looking to improve efficiency and reduce their environmental impact.
