Cold Storage Fulfillment Centres: Design Tips

Designing cold storage facilities requires careful planning to maintain product quality, manage energy costs, and support efficient operations. Key considerations include:

• Site Selection: Proximity to transportation networks like GTA’s 400-series highways ensures faster delivery. Verify zoning regulations and power infrastructure early.
• Temperature Control: Separate zones for frozen, chilled, and ambient products help maintain optimal storage conditions. Use insulated panels and airlocks to minimize temperature fluctuations.
• Energy Efficiency: High-performance insulation, LED lighting, and renewable energy options like solar panels can reduce energy costs by up to 30%.
• Automation & Storage: Automated systems and high-rise racking increase storage density and reduce labour costs. Robots can operate continuously in subzero environments, improving productivity.
• Future Growth: Plan for flexibility with modular designs, tri-temp zones, and clear heights for vertical storage.

A well-designed cold storage facility ensures smooth workflows, reduces spoilage risks, and prepares businesses for growing market demands.

Designing tomorrows Cold Storage buildings with Michael Cody

sbb-itb-1862e65

Choosing the Right Site and Location

Where you choose to set up your facility in the Greater Toronto Area (GTA) can make or break your operations. Delivery speed, operating costs, and workforce stability all hinge on location. To get it right, you need to balance logistical perks - like access to transportation networks - with design necessities such as insulation, temperature control, and automation.

Access to Markets and Transportation Networks

Quick delivery depends on great highway access. Facilities near the 400-series highways (like the 401, 407, 400, and 427) enjoy faster last-mile delivery and easy connections to key transport hubs, including Pearson International Airport.

"Businesses increasingly recognize that proximity to major markets justifies premium industrial rents." - Allen Mayer, Industrial Real Estate Specialist

Labour access is another must-have. Sites close to public transit or residential areas make it easier to maintain a steady workforce for receiving, packing, and shipping. Urban Toronto locations often come with higher lease rates, but outer GTA markets typically offer more affordable options.

Once you've nailed down transportation links, double-check that local zoning supports your facility's design and operational needs.

Zoning and Land Use Requirements

Regulations can significantly impact your facility’s design and functionality. Zoning rules vary widely across the GTA. Urban infill sites often face stricter constraints, while suburban and outer-ring areas are better suited for large-scale cold storage projects. Make sure the zoning in your chosen location permits industrial use, refrigeration equipment, and the necessary building heights. Modern facilities often need clear heights of 28–30 feet, and high-tech centres may require 32+ feet to accommodate automation and mezzanine levels.

Electrical capacity is another critical factor. Cold storage facilities consume far more electricity than standard warehouses to power refrigeration systems, specialized HVAC, and even EV charging stations for delivery fleets. Sorting out power infrastructure after signing a lease can lead to hefty costs, so verify this early. Additionally, the floors must handle heavy loads - cold storage spaces typically need to support over 200 pounds per square foot for refrigeration equipment and high-rise racks, compared to the 125–150 pounds per square foot standard in regular warehouses.

For expert guidance tailored to the GTA’s industrial market, you can reach out to Michael Law at Lennard Commercial - Industrial Real Estate Services (https://mlawrealestate.com). His deep market knowledge can help you navigate these complex decisions with confidence.

Building Envelope and Insulation Design

A well-constructed building envelope - comprising walls, roof, and floor - plays a critical role in maintaining temperature control and cutting energy costs. Just like an efficient layout ensures smooth operations, a properly designed envelope keeps heat out and cold in.

Advanced Insulation Materials

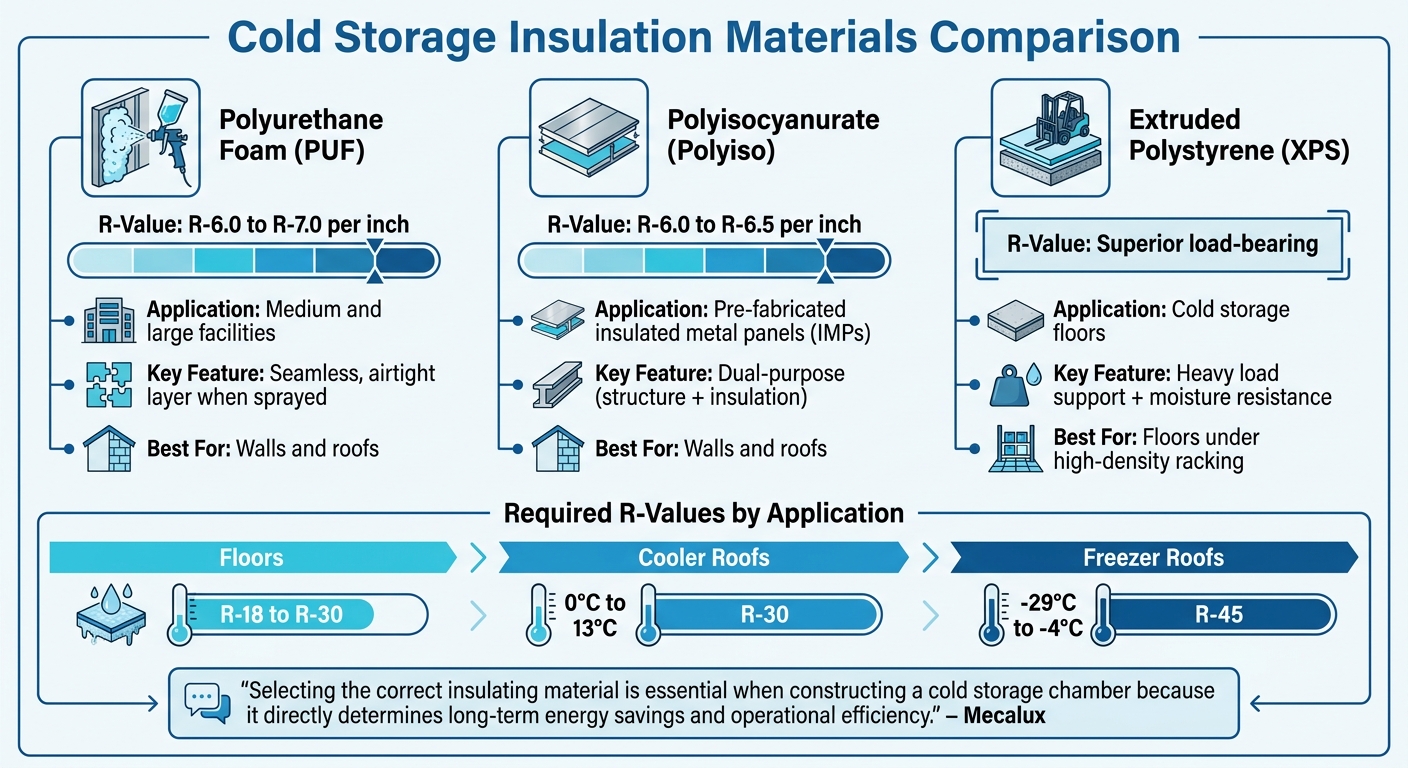

Polyurethane foam (PUF) is a top choice for medium and large facilities due to its high thermal performance (R-6.0 to R-7.0 per inch). When sprayed, it forms a seamless, airtight layer. Similarly, Polyisocyanurate (Polyiso) delivers strong thermal resistance (R-6.0 to R-6.5 per inch) and is often used in pre-fabricated insulated metal panels (IMPs), which serve as both the wall structure and insulation.

"Selecting the correct insulating material is essential when constructing a cold storage chamber because it directly determines long-term energy savings and operational efficiency." - Mecalux

Floor insulation has different requirements. Extruded polystyrene (XPS) outperforms expanded polystyrene (EPS) for cold storage floors because it supports heavy loads and resists moisture better. Floors typically need insulation values of R-18 to R-30, while roofs require R-30 for coolers (0°C to 13°C) and R-45 for freezers (-29°C to -4°C). For freezer rooms, pairing floor insulation with sub-slab heating is crucial to prevent frost heave.

An airtight seal around these insulated surfaces is just as important as the materials themselves to prevent energy loss.

Air Sealing and Vapour Barriers

Insulation alone isn’t enough if gaps allow air to escape. Every time cold air leaks out, warm, humid air takes its place. This moisture can condense inside walls, creating conditions for pathogen growth in as little as two hours.

Spray polyurethane foam is highly effective for sealing small gaps, especially at roof-to-wall and floor-to-wall transitions, where rigid boards might not fit properly. Closed-cell spray foam not only provides excellent thermal performance but also acts as a built-in vapour barrier. To prevent moisture from condensing within the insulation, place the vapour barrier on the "warm side" of the material. At entry points like loading docks, rapid roller doors or air curtains can help minimize the exchange of cold internal air with warm external air.

Temperature Zones and Layout Planning

Planning temperature zones and designing the layout go hand in hand with insulation design. These steps are essential for maintaining operational efficiency and ensuring product quality. Once the facility is sealed, the interior should be divided into specific temperature zones. This approach not only preserves products but also aligns with food safety standards. Each type of product - whether fresh produce or frozen meats - requires its own temperature range for optimal storage.

Separate Zones for Different Product Types

Temperature zones should be clearly defined to meet the needs of various products. Common categories include:

• Ambient (10–30°C): Suitable for products that don't require refrigeration. For pharmaceutical storage, tighter controls of 20–25°C are often needed to meet Controlled Room Temperature (CRT) standards.
• Chilled/Refrigerated (0.5–12.7°C): Ideal for perishable items like dairy and fresh produce.
• Frozen (–18 to –29°C): Necessary for long-term storage of frozen meats and similar products.
• Human Comfort (20–24.4°C): Maintains a comfortable environment in work areas.

"A 'zone' in a warehouse is a physically or technologically segregated area where environmental conditions like temperature and humidity are actively and independently controlled."

• Adriaan Van Swieten, Auge Co. Inc

To create these zones, use Insulated Metal Panels for permanent partitions or flexible options like insulated curtains or Flexiwall systems for temporary adjustments. At critical transition points - such as loading docks or doorways between zones - features like airlocks, vestibules, or high-speed doors can help reduce temperature fluctuations and prevent issues like fogging or icing.

Before finalizing the layout, it's essential to conduct temperature mapping. Using data loggers across the facility can reveal hot and cold spots, ensuring every area maintains its designated temperature range.

Workflow Design and Product Access

Once zones are established, the next step is to design an efficient workflow. Proper layout planning minimizes temperature fluctuations and shortens transit times, which improves efficiency. For example, positioning chilled and frozen zones away from south-facing walls can reduce refrigeration loads. Similarly, placing high-turnover items - like fresh produce or dairy - near packing stations and loading docks reduces travel distances and limits how often doors need to open.

To maintain proper cold air circulation, leave gaps of 7.5–10 cm between pallets. Avoid creating aisles where warm air can pool, as this can disrupt both cooling and order picking. If your operation involves moving products between zones with drastically different temperatures, consider adding a tempering or staging zone set between 7–12.7°C. This allows products to adjust gradually, reducing condensation and thermal shock risks.

Strategic HVAC zoning plays a key role too. In areas where people work, using Vertical Temperature Stratification (VTS) heaters or large-scale fans can maintain comfortable conditions without affecting adjacent cold zones. This approach supports worker productivity while protecting the integrity of temperature-sensitive products.

Automation and Vertical Storage Systems

Automation and vertical storage are reshaping cold storage operations, tackling two of the biggest cost challenges: labour and energy. With labour accounting for around 50% of operating costs and refrigeration consuming 60% to 70%, cutting these expenses is a top priority. Here’s how automation is making a difference.

Automated Storage and Retrieval Systems (ASRS)

ASRS technology eliminates the need for forklifts and manual handling in the coldest zones. Robots can work continuously in subzero temperatures, unlike human workers who must pause after just 10 minutes to rewarm. Brian Reaves from Southern States Toyotalift highlights the challenge:

"In cold storage, time is not your friend. ... workers must spend more time rewarming than working".

ASRS doesn’t just improve safety - it also significantly increases storage density. By removing the need for wide forklift aisles and reaching heights of up to 45 metres, these systems can double storage capacity within the same footprint. Automated warehouses can improve overall efficiency by nearly 50%. For facilities where full ASRS systems aren’t an option due to ceiling height restrictions, semi-automated pallet shuttles offer a practical solution. These shuttles can operate in temperatures as low as -30°C and reduce damage to racking caused by forklifts.

High-Rise Racking for Vertical Space

Maximizing vertical space with high-rise racking is another way to boost storage efficiency. These tall systems make better use of a facility’s cubic space. Building upwards reduces the roof area, which limits heat loss and improves thermal performance. High-density storage also ensures operating costs remain steady, regardless of how full the facility is.

Structural steel is essential for racking in cold environments. It supports pallet loads ranging from 1,135 to 1,360 kg and can handle the seismic forces common in tall structures. Different racking systems cater to specific needs: drive-in racking is ideal for blast freezers with large quantities of the same SKU, while pallet flow systems work best for perishable goods requiring First-In, First-Out (FIFO) rotation.

With the average industrial cold storage facility being 37 years old, many operators are retrofitting older buildings with high-density racking to modernize and meet growing demand.

Energy Efficiency and Long-Term Planning

Efficient energy use is a cornerstone of running cold storage facilities effectively. With refrigeration systems driving a large portion of energy consumption, finding ways to cut these costs is critical. By focusing on energy upgrades and planning for the long haul, facilities can not only save on expenses but also optimize the placement of high-demand zones and automation systems.

Renewable Energy Options

Solar panels offer a way to offset the substantial electricity needs of refrigeration. Pairing them with heat recovery systems can be a game-changer. These systems capture waste heat from refrigeration units and repurpose it to warm offices, workspaces, or transit areas. For example, a 2025 project in Longueuil combined solar panels, heat recovery, upgraded forced air systems, and heated loading dock curtains. The result? A 22% drop in energy costs and better temperature stability in critical zones.

Other upgrades can also make a big difference. Switching from traditional HID lighting to LEDs reduces heat output while cutting energy costs. Replacing older windows and doors with high-efficiency models can lower energy bills by about 12% on average. Heated air curtains installed at loading docks help prevent thermal loss during heavy traffic, and programmable thermostats with automated climate controls allow precise temperature management - even during off-hours.

Designing for Growth and Change

The cold storage market is booming. By 2024, it’s expected to surpass $190 billion, with a projected annual growth rate of 17% through 2030. To keep up, facilities need designs that can evolve with shifting technology and demand. For instance, clear heights of at least 13.7 m (45 ft) - or even up to 30.5 m (100 ft) - enable high-density vertical storage and the integration of automated systems, all without requiring additional land. A typical 18,580-square-metre (200,000-square-foot) cold storage facility needs 3 to 4 megawatts of power, making it essential to assess site power availability early in the planning phase.

Flexibility is another key feature. Tri-temp designs allow facilities to handle products across a wide temperature range, from -29°C to 13°C, ensuring operational versatility. Modular construction methods, like "box-in-box" retrofits, make it easier to modernize older facilities or expand capacity quickly within existing industrial spaces.

Conclusion

Designing a cold storage facility requires careful attention to site selection, insulation, and temperature zoning. Choosing a location near transportation hubs, using high-performance building materials with proper vapour barriers, and planning efficient temperature zones are key steps to optimizing operations. As FDC Builders points out:

"A poorly designed cold storage facility can lead to product loss, skyrocketing energy costs, and operational bottlenecks".

Starting with a solid foundation helps avoid these costly problems later.

Energy efficiency and flexibility also play a big role. Advanced insulation techniques can reduce energy use by 20–30%. Dividing the facility into specific zones - frozen, chilled, and ambient - ensures it can adapt to changing market demands.

Pre-engineered metal buildings (PEMBs) are another smart choice for cold storage. They’re designed for energy efficiency, pest and mould resistance, and easy expansion. When combined with automation, vertical storage solutions, and renewable energy systems, these buildings can support long-term growth.

For businesses in the Greater Toronto Area exploring cold storage options, Lennard Commercial offers expertise in industrial real estate. They provide insights and strategies to help find properties that meet both current needs and future growth objectives.

FAQs

How do I estimate power needs for a cold storage facility in the GTA?

To figure out the power requirements for a cold storage facility, you need to evaluate the refrigeration load. This depends on several factors, including the size of the storage area, the quality of insulation, desired temperature settings, and internal heat gains from equipment or lighting.

In the Greater Toronto Area (GTA), the local climate also plays a role in determining cooling needs, as seasonal temperature fluctuations can impact energy demands.

For a precise estimate, it's essential to perform a detailed load calculation that accounts for all these variables. Working with refrigeration specialists is highly recommended to ensure the estimates are accurate and aligned with the specific design and energy requirements of your facility.

What’s the best way to prevent condensation and ice between temperature zones?

To avoid condensation and ice build-up between different temperature zones in cold storage areas, it's important to take a few key steps. First, ensure that the insulation is sufficient and in good condition to prevent temperature transfer. Second, maintain proper ventilation to regulate airflow and control moisture levels. Lastly, always dry and clean surfaces thoroughly after cleaning procedures to eliminate residual moisture. These measures can help manage temperature differences and moisture effectively.

When does automation (ASRS or shuttles) make financial sense in cold storage?

Automation technologies like ASRS (Automated Storage and Retrieval Systems) or shuttles can make financial sense in cold storage facilities when they significantly improve space utilization and operational efficiency. These benefits need to be substantial enough to balance out the high costs of energy and equipment. This approach is particularly effective in facilities handling high throughput and large volumes, where the boost in efficiency can make the investment worthwhile.
