Cold Storage vs. Temperature-Controlled Warehouses

When selecting a warehouse for your business, the choice between cold storage and temperature-controlled facilities depends on your product's specific temperature needs, costs, and operational requirements. Cold storage maintains sub-zero temperatures (-23°C to -29°C) for frozen goods like ice cream and meats, while temperature-controlled warehouses operate at 0.5°C to 18°C for items like fresh produce, dairy, and pharmaceuticals. Here's the key difference:

• Cold Storage: Higher construction costs (CA$220–CA$350+ per sq. ft.), significant energy demands (25–35 watts/sq. ft.), and specialized infrastructure like heated slabs and insulated seals.
• Temperature-Controlled: Lower costs (CA$85–CA$150 per sq. ft.), moderate energy use (5–10 watts/sq. ft.), and standard HVAC systems.

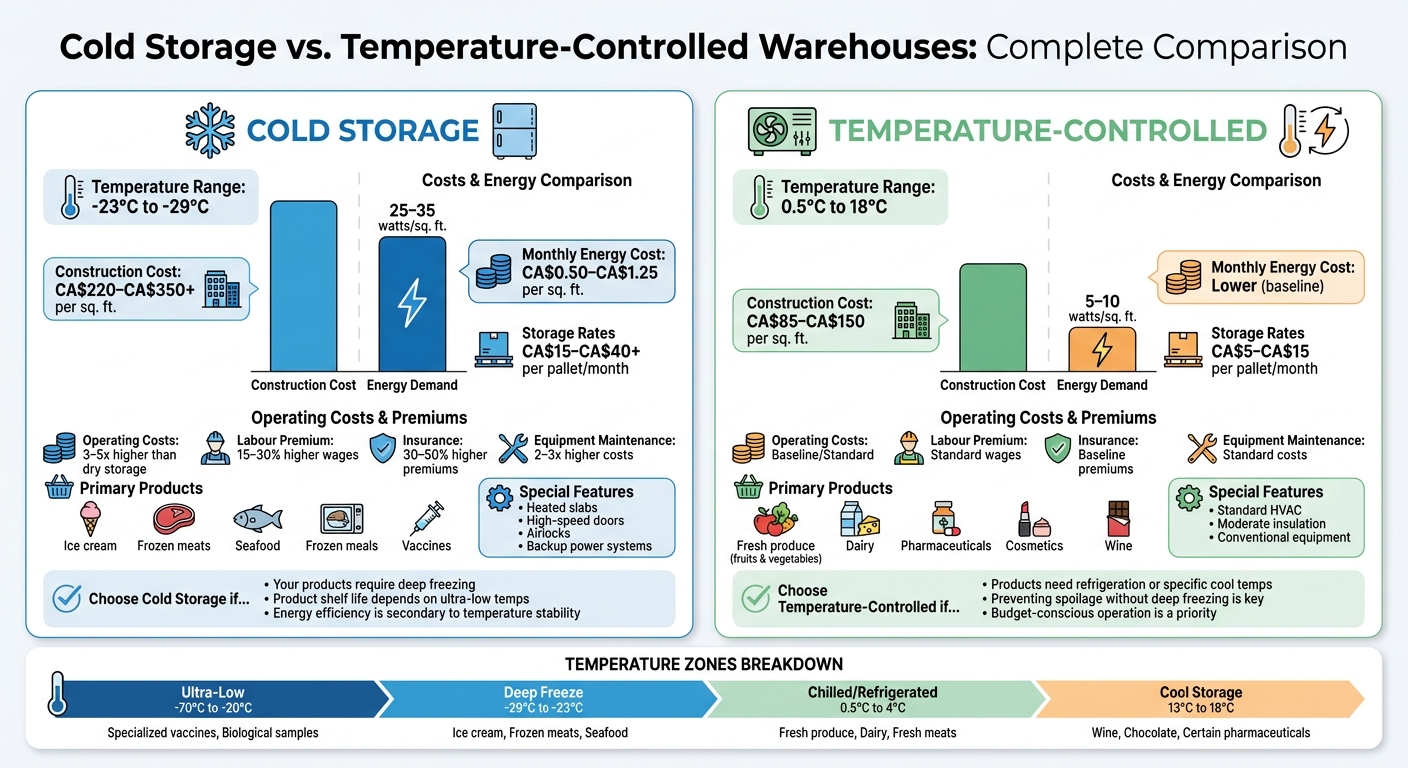

Quick Comparison:

Feature	Cold Storage	Temperature-Controlled
Temperature Range	-23°C to -29°C	0.5°C to 18°C
Construction Cost	CA$220–CA$350+	CA$85–CA$150
Energy Demand	25–35 watts/sq. ft.	5–10 watts/sq. ft.
Primary Products	Frozen goods, vaccines	Produce, dairy, cosmetics
Operating Costs	Higher	Lower

Choosing the right facility ensures your products stay safe, meet regulations, and match your budget. Cold storage is ideal for frozen goods, while temperature-controlled spaces suit items that need cooling without freezing.

Cold Storage Construction Explained | Challenges & Solutions in Refrigerated Warehouses

sbb-itb-1862e65

Use Cases and Product Applications

Building on earlier facility specifications, here are some examples that show how specific temperature needs influence application choices.

Cold Storage Applications

Cold storage facilities are essential for products that need to stay frozen. For example, ice cream must be kept at consistent deep-freeze temperatures to maintain its texture and prevent melting. Similarly, pre-packaged frozen meals and frozen fruits and vegetables depend on stable freezer conditions. These items are preserved at sub-zero temperatures to retain their nutritional value and inhibit bacterial growth over long periods.

Certain vaccines and biological samples require even colder environments, with ultra-low temperatures reaching as low as -70°C. This type of storage is a niche application, distinct from standard cold storage. A well-known example is the Pfizer-BioNTech vaccine, which must be stored in these extreme conditions to remain effective.

Temperature-Controlled Warehouse Applications

Unlike frozen storage, some products benefit more from precise chilling rather than freezing. Temperature-controlled warehouses are designed to maintain cool, non-frozen conditions that help extend the freshness and usability of various goods. For instance, fresh produce requires temperatures between 0.5°C and 4°C to slow ripening and decay without freezing the cells.

Dairy products also need refrigeration to prevent spoilage, while beverages like wine and certain craft beers are best stored in cool environments ranging from 13°C to 18°C to avoid chemical degradation. Pharmaceuticals often require exact chilled conditions, typically between 2°C and 8°C, to retain their effectiveness. Additionally, temperature-controlled spaces are critical for protecting cosmetics, flowers, and electronics from temperature fluctuations that could damage their quality or functionality.

Facility Type	Temperature Range	Primary Products
Deep Freeze	-23°C to -29°C	Ice cream, frozen meats, seafood, frozen meals
Chilled/Refrigerated	0.5°C to 4°C	Fresh produce, dairy, fresh meats, floral
Cool Storage	13°C to 18°C	Wine, chocolate, certain pharmaceuticals
Ultra-Low	-20°C to -70°C	Specialized vaccines, biological samples

Design and Construction Differences

"Regular warehouses keep the rain out. Cold storage keeps the cold in. Two completely different challenges".

The design and construction of cold storage facilities differ significantly from standard warehouses, influencing both their cost and functionality.

Cold Storage Facility Design

Cold storage facilities are essentially large refrigeration units that double as warehouses. To maintain low temperatures, their construction must focus on preventing moisture and heat from entering. This requires tightly sealed building envelopes and industrial refrigeration systems with full redundancy. These systems consume significantly more energy - around 25–35 watts per square foot compared to the 5–10 watts used in standard warehouses.

Freezer areas present unique challenges. Their concrete slabs are equipped with heating systems, like electric or glycol-based elements, to prevent "frost heave", a condition where frozen ground expands and damages the foundation. Loading docks are designed with high-speed doors, airlocks, and advanced seals to limit warm air intrusion.

These complexities drive up construction costs. Cold storage facilities can cost approximately CA$220 per square foot, compared to CA$85 per square foot for dry storage. Additionally, many cold storage facilities require full backup power systems, as even brief refrigeration failures can lead to inventory losses within hours. While cold storage involves intricate thermal management, temperature-controlled warehouses rely on simpler systems for maintaining stable conditions.

Temperature-Controlled Warehouse Design

Temperature-controlled warehouses, on the other hand, focus more on efficient climate control through standard HVAC systems rather than heavy insulation. These facilities use moderate insulation, avoiding the need for the thick foam panels typical of cold storage. Their concrete slabs do not require heating elements, as they are not exposed to sub-zero temperatures. HVAC systems maintain temperatures in a comfortable range - 13°C to 24°C (55°F to 75°F) - rather than the extreme cold of freezer environments.

Loading docks in these warehouses use standard equipment, prioritizing protection from the elements rather than creating an airtight thermal seal. Material handling equipment is also conventional, unlike the specialized cold-rated forklifts required in cold storage. These forklifts, which include features like heated cabins and freeze-resistant lubricants, cost around CA$45,000–CA$50,000 compared to the CA$30,000 price tag of standard models. This simpler approach to temperature control results in lower construction and operating costs while still meeting the needs of temperature-sensitive goods.

Operating Costs and Energy Efficiency

The financial divide between cold storage and temperature-controlled warehouses isn't just about construction costs. Energy consumption is a major factor, often exceeding payroll expenses during peak months. Gaurav Sharma, Founder and CEO of Attrock, emphasizes this point: "Energy isn't just an expense – it's often the primary operational cost driver".

Cost Comparison Table

The table below highlights the cost differences driven by design and energy demands. Cold storage facilities require significantly more energy - 25–35 watts per square foot - compared to the 5–10 watts used in standard temperature-controlled warehouses. Monthly energy costs for cold storage range from CA$0.50 to CA$1.25 per square foot, with electricity making up 60%–70% of total operational expenses.

Cost Category	Temperature-Controlled Warehouse	Cold Storage (Frozen)
Construction Cost (per sq. ft.)	CA$85 – CA$150	CA$220 – CA$350+
Energy Demand	5 – 10 watts/sq. ft.	25 – 35 watts/sq. ft.
Insurance Premiums	Baseline	30% – 50% higher
Equipment Maintenance	Baseline	2 – 3 times higher
Storage Rates (per pallet/month)	CA$5 – CA$15	CA$15 – CA$40+
Labour Premium	Standard wages	15% – 30% higher

Cold storage facilities face operating costs that are three to five times higher than those of dry storage. This is due to higher energy consumption, increased insurance premiums, and more frequent equipment maintenance. Additionally, workers in cold environments often earn 15%–30% more because of the challenging conditions and specialized skills required.

Energy Efficiency Factors

Design plays a huge role in controlling long-term energy costs. HVAC and refrigeration systems alone account for 60%–70% of a cold warehouse's energy use. However, specific upgrades can make a big difference. For example, variable speed drives on compressors can reduce electricity costs by 15%–25%, while switching to LED lighting can cut energy usage by 60%–70%.

Using high-performance insulation like polyurethane foam is another effective strategy. With an R-value of 6.25 per inch, it provides better thermal resistance than polystyrene (R-value 4.0–5.0) or fibreglass (R-value 2.2–4.0). Other measures like automated high-speed doors, air curtains, and dock seals help minimize thermal loss during loading operations. Regular maintenance, such as weekly door seal inspections and monthly refrigeration coil cleaning, can further lower emergency repair costs by up to 40%.

In contrast, temperature-controlled warehouses rely on standard HVAC systems to maintain moderate temperatures, avoiding the constant energy demands of refrigeration equipment. These operational differences highlight how design and energy efficiency can directly impact a facility's long-term performance and compliance with regulations.

Regulations and Market Trends

Food Safety and Industry Regulations

In Canada, regulations draw a clear line between facilities handling exports and those serving domestic markets. Under the Safe Food for Canadians Regulations (SFCR), cold storage facilities aren't required to have a licence unless they are part of an international export chain dealing with meat, fish, or dairy products. The Canadian Food Inspection Agency (CFIA) enforces these export-related rules, stating:

"The CFIA will only certify meat for export, from any point of production, if all establishments identified on the certificate are federally licensed."

Facilities involved in exports must also implement a Preventive Control Plan (PCP). This includes ensuring strict segregation between export-eligible and non-eligible products during receiving, shipping, and distribution. Additionally, such facilities must closely monitor and record temperature and humidity to match the specific needs of each food type. Beyond these requirements, third-party certifications like SQF (Safe Quality Food) and BRC (Global Standard for Storage and Distribution) are becoming increasingly favoured by major retailers, even when not legally mandated.

On the other hand, temperature-controlled warehouses serving domestic markets face fewer regulatory hurdles. While maintaining proper environmental conditions remains essential, these facilities are not bound by the licensing and segregation rules required for export operations. However, compliance with export standards often requires design modifications, which can significantly increase both construction and operational costs.

These stringent rules have a direct impact on market trends and business strategies in the Greater Toronto Area (GTA).

GTA Market Insights

The refrigerated warehousing market in the GTA is shaped by both regulatory demands and shifting consumer preferences. In 2023, the Canadian refrigerated warehousing market was valued at USD 2,170.5 million and is expected to grow at an annual rate of 4.15% through 2033. This growth is largely fuelled by rising consumer demand for fresh and frozen foods, particularly among higher-income groups. Among storage types, frozen storage (temperatures ranging from –18°C to –25°C) dominated the market in 2023, driven by strong demand for products like meat, poultry, and baked goods.

Public refrigerated warehouses are the dominant players in the GTA market. Their popularity stems from the flexibility and additional services they offer, such as cross-docking, blast freezing, and inventory management. These services help businesses avoid the substantial investments needed to build and maintain private facilities.

Michael Law of Lennard Commercial uses his deep understanding of the GTA market to guide businesses through these challenges. His expertise helps companies find suitable cold storage and food-grade facilities in the region, whether they are focused on export compliance or domestic temperature-controlled solutions.

Conclusion: Choosing the Right Facility

Key Takeaways

When deciding on a facility, it’s essential to align your choice with your product’s specific needs - especially regarding temperature sensitivity, regulatory demands, and budget. Cold storage facilities are designed to maintain precise sub-zero temperatures (–23°C to –29°C), which makes them indispensable for perishables, pharmaceuticals, and products subject to strict regulations. However, this precision comes with higher construction and energy costs due to the specialized infrastructure required.

On the other hand, temperature-controlled warehouses maintain a more moderate climate, typically between 18°C and 24°C. These spaces are well-suited for shelf-stable goods that don’t need full refrigeration but benefit from avoiding extreme seasonal temperature swings. The cost differences between these facilities are also notable. Cold storage pallet rates generally range from CA$15 to CA$40+ per month, while dry warehouses are more economical, falling between CA$5 and CA$15 per pallet per month.

It’s also worth factoring in the added expenses associated with cold storage, including specialized equipment, higher labour costs, and increased insurance premiums. Understanding these distinctions ensures you select a facility that fits both your operational requirements and financial goals.

How Lennard Commercial Can Help

Deciphering the nuances between cold storage and temperature-controlled warehousing is just the beginning. Navigating the industrial real estate market in the Greater Toronto Area demands local expertise, especially when looking for specialized facilities. That’s where Michael Law of Lennard Commercial comes in. With extensive market knowledge and a deep understanding of operational needs, he helps businesses find spaces tailored to their unique requirements - whether it’s CFIA-licensed cold storage for exports or temperature-controlled warehouses for domestic operations.

Lennard Commercial offers customized strategies for leasing, acquisitions, and relocations, backed by proprietary data and insights. From evaluating construction costs to ensuring energy efficiency and regulatory compliance, Michael Law can guide you through every step of the process. To explore how Lennard Commercial can support your search for the perfect industrial space, visit mlawrealestate.com.

FAQs

What temperature does my product actually need?

The appropriate storage temperature varies depending on the type of product you're dealing with:

• Perishable foods: Items like fresh produce, dairy, and meat generally require temperatures between 0°C and 7°C to maintain freshness and prevent spoilage.
• Frozen goods: Products such as seafood and ice cream need much colder conditions, typically ranging from -18°C to -30°C.
• Dry goods or non-perishable items: These are often stored in ambient conditions, with temperatures between 15°C and 25°C being sufficient.

Always factor in your product's specific requirements, including its shelf life and safety standards, to ensure it remains in optimal condition.

How do I estimate total operating costs beyond rent?

To get a clear picture of total operating costs beyond rent, you’ll need to account for several factors, including energy usage, upkeep, refrigeration systems, and meeting safety standards. Here are the key areas to consider:

• Energy expenses: Refrigeration and climate control systems often consume a lot of power.
• Maintenance needs: Regular servicing of equipment and systems is essential to keep operations running smoothly.
• Safety and compliance: Meeting regulatory requirements can involve both time and financial investment.

These costs can vary widely depending on elements like the type of refrigeration system and the quality of insulation. Both factors play a major role in determining the ongoing expenses of running cold storage or temperature-controlled facilities.

Do I need CFIA licensing for my cold storage operation?

Cold storage operations in Canada need a CFIA (Canadian Food Inspection Agency) licence only if they handle food products destined for international export. This is particularly crucial for meat and meat products, as they must be stored in federally licensed facilities to comply with export certification standards.
