Ultimate Guide to Distribution Centre Design

Distribution centres (DCs) are critical for moving goods efficiently. A well-designed DC can cut costs, improve operations, and handle future growth. Here's a quick breakdown of key considerations:

• Location: Proximity to highways, intermodal yards, or airports in the GTA is key. Transportation costs can make up 80% of total expenses.
• Space Utilization: Use vertical space with clear heights of 32–40 feet. Maximize flexibility with clear-span steel framing.
• Climate Challenges: Ontario's snow loads and freeze–thaw cycles require durable insulation, dock levelers, and destratification fans.
• Power Needs: By 2026, getting new grid connections in the GTA takes 36–48 months, costing $11.3M per megawatt.
• Sustainability: Features like LED lighting, solar-ready roofs, and energy-efficient systems lower costs and meet carbon regulations.

Quick Tip: Plan for future needs by designing with flexibility, automation, and energy efficiency in mind. Early decisions on layout, electrical capacity, and structural elements can save significant costs down the road.

Strategic Planning for Distribution Centres

Matching Location to Operational Needs

Choosing the right location for a distribution centre (DC) goes far beyond finding a building with enough space. In the Greater Toronto Area (GTA), the most sought-after sites are located near 400-series highway interchanges, intermodal yards, and densely populated areas like Brampton, Mississauga, and Vaughan. These elements directly impact the speed of moving goods and the reliability of staffing the facility.

"Transportation costs can comprise up to 80% of total costs... it's obvious why the most competitive companies are willing to pay a premium for location." - SIOR Canada

Another key factor is power availability, which is becoming just as critical as proximity to highways. For DCs planning to adopt electric vehicle (EV) fleets or automation, the site's electrical capacity might be the deciding factor. Always confirm the available megawatts before signing any agreements. Additionally, if you're shipping across Canada, a dual-location approach - one DC in the East and another in the West - may be more effective. A single GTA facility might fall short of reaching 70% of Canadian customers within two days via ground shipping.

Once the location is set, the next step is to ensure the facility's capacity aligns with your operational needs.

Throughput and Capacity Planning

Capacity planning begins with understanding your SKU count, daily order volumes, and peak demand periods. In Canada, peak season volumes can surge to 340% above normal levels, making it clear that designing only for average throughput could lead to serious inefficiencies.

One way to optimize storage is by considering clear height. Each additional foot of clear height can boost usable storage space by 7–10%. By Q1 2026, over 68% of new DC leases in North America included clear heights of 36 feet or more, a significant increase from 41% in 2022. Dock ratios are equally important. While standard buildings offer one dock door per 10,000 square feet, high-volume e-commerce operations typically need one dock door per 5,000 to 6,000 square feet. To future-proof your facility, consider installing rough-in conduit runs and oversized electrical panels during construction. These additions can lower future costs and keep automation options open.

But capacity isn’t everything - meeting regulatory standards and addressing environmental, social, and governance (ESG) factors are just as crucial.

Regulations and ESG Considerations

From a regulatory perspective, every DC in Ontario must adhere to municipal zoning laws (usually "Employment Areas"), fire codes that include ESFR sprinkler systems, racking load standards, and occupancy permits. Engaging a permitting specialist early in the process can help you avoid costly design changes down the line.

ESG considerations have also become a high priority for both operators and investors. A prime example is the Lakeridge Logistics Centre (LLC) in Ajax, Ontario. Completed by Pure Industrial in early 2026, this 1.2-million-square-foot facility earned Zero Carbon Building-Design™ certification, making it the largest industrial property in Canada to achieve this status. It features electric air-source heat pumps, rooftop solar panels, and a Building Automation System with LED lighting. These upgrades resulted in a 26% reduction in annual energy use and a 53,500 kg decrease in CO₂ emissions per year.

"Lakeridge Logistics Centre's Zero Carbon Building Design certification demonstrates the growing demand for low-carbon industrial real estate and the business case for energy-efficient, electrified buildings." - Mark Hutchinson, SVP, Green Building Programs & Innovation, CaGBC

To prepare for future carbon taxes and enhance long-term value, specifying solar-ready roofs and electric heating systems during the design phase is a smart move. These features not only reduce environmental impact but also make the property more attractive to tenants and buyers.

sbb-itb-1862e65

Warehouse Design Principles | Warehouse Design and Layout | How to Design Warehouse Layout

Designing the Layout and Flow

Optimising Material Flow

A core principle of designing a distribution centre (DC) layout is ensuring goods move in one direction. Whether the flow follows a straight, U-shaped, or L-shaped path, keeping it unidirectional helps eliminate backtracking and cross-traffic - two common culprits behind operational delays.

"The brief is the design. Everything else is implementation." - Trace Consultants

Prioritizing flow over storage capacity is essential. While it might be tempting to add extra racking by narrowing aisles, this often leads to congestion and operational bottlenecks over time. One practical solution is to physically separate inbound and outbound docks. This reduces sorting errors and minimizes accidents caused by cross-traffic.

Once flow pathways are defined, the next step is to design the layout for maximum space efficiency and operational zoning.

Layout Configurations and Space Allocation

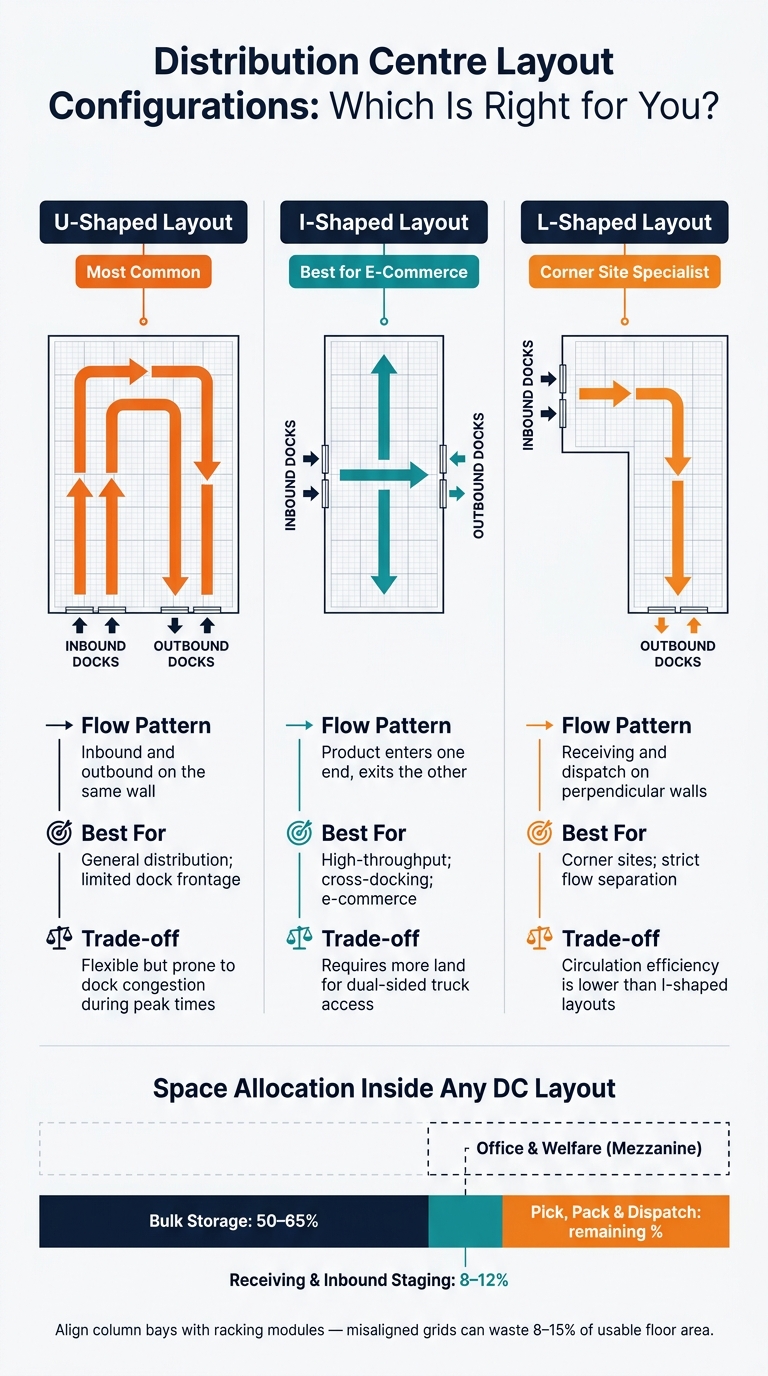

Distribution centres typically use one of three common layout types, each suited to specific operational needs:

Layout Type	Flow Pattern	Best For	Trade-off
U-shaped	Inbound and outbound on the same wall	General distribution; limited dock frontage	Flexible but prone to dock congestion during peak times
I-shaped	Product enters one end, exits the other	High-throughput; cross-docking; e-commerce	Requires more land for dual-sided truck access
L-shaped	Receiving and dispatch on perpendicular walls	Corner sites; strict flow separation	Circulation efficiency is lower than I-shaped layouts

Space allocation within the facility should follow a consistent zoning approach. For example:

• Receiving and inbound staging typically take up 8–12% of the floor area.
• Bulk storage occupies the largest share, at 50–65%.
• Pick, pack, and dispatch zones use the remaining space.
• Office and welfare areas are often placed on mezzanines to save ground-level space.

One often-overlooked detail is column bay spacing. Aligning column bays with racking modules is critical. A 12-metre bay spacing works well for back-to-back pallet rows with a forklift aisle in between. Misaligned grids, such as a 6-metre spacing, can waste 8–15% of usable floor area due to column intrusions. Proper spacing not only maximizes floor efficiency but also supports an effective operational flow.

Storage Systems and Picking Methods

After allocating space, the next step is selecting storage systems that enhance efficiency. The choice depends on factors like SKU count, product velocity, and available clear height.

• Selective pallet racking is the most common system, offering 100% access to each pallet. It’s ideal for operations with a mix of low and high SKU velocities.
• Drive-in racking, which uses a last-in, first-out (LIFO) system, is better suited for high-density storage of low-SKU, high-volume products like beverages or cold storage items.

In areas where land costs are high, Very Narrow Aisle (VNA) racking can increase pallet density by 30–40% by reducing aisle widths to 1.5–1.8 metres. This system requires specialized turret trucks but offers significant space savings. For operations focusing on high throughput and labour efficiency, Automated Storage and Retrieval Systems (AS/RS) are an excellent option. These systems can operate at heights of 20–30 metres, making them ideal for environments where labour costs are a major concern.

To improve picking efficiency, use ABC slotting to position high-velocity items close to dispatch points. Combine this with zone or batch picking methods to cut down on travel time during operations.

Infrastructure, Technology, and Site Considerations

Efficient layout design is just the beginning. A well-functioning distribution centre (DC) also depends on solid infrastructure and advanced technology to keep operations running smoothly.

Material Handling Equipment and Automation

The equipment you select has a ripple effect on every aspect of your facility. For instance, aisle widths and even the thickness of your floors depend on your choice of material handling equipment. Counterbalance forklifts need about 3.7–4 metres (12–13 feet) of clearance, while reach trucks can work in narrower aisles of 2.4–3 metres (8–10 feet). On the other hand, very narrow aisle (VNA) turret trucks require even less space, operating in just 1.5–1.8 metres (5–6 feet). Picking the wrong equipment early on can lock you into a layout that’s difficult - and costly - to change.

Automation is advancing quickly. By 2026, the global warehouse automation market is expected to hit $30 billion, with 65% of warehouses planning to adopt Autonomous Mobile Robots (AMRs) by then. However, managing diverse robot fleets can get tricky. That’s where a Warehouse Execution System (WES) comes in. Acting as a centralized orchestration layer, a WES can coordinate mixed-robot fleets in real time, preventing traffic conflicts and streamlining operations.

"The smartest greenfield warehouses in 2026 aren't built around racking and forklifts - they're designed around data flows, robot fleets, and real-time traceability." - Riley Quinn, iFactory

Centralized fleet management can improve productivity by 30–50%. To future-proof your facility, consider building in at least 15% extra space for yard dimensions and aisle widths. Many facilities that skip this step end up struggling to accommodate fleet growth just a few years down the road.

IT Systems and Digital Tools

A modern DC relies on three interconnected software systems to function effectively:

• ERP (Enterprise Resource Planning): Handles financial records and overarching business processes.
• WMS (Warehouse Management System): Manages inventory, order processing, slotting, and labour planning.
• WES (Warehouse Execution System): Bridges the gap between the ERP and operational equipment, managing tasks and robot traffic in real time.

Without the WES, the ERP can become a bottleneck during peak periods, slowing everything down.

"Warehouses fail when the ERP becomes the bottleneck. You need a buffering layer that speaks operator and device on one side and speaks ERP on the other." - Ashley Taylor, Product Manager, Cleverence

Digital twins are becoming a game-changer for new facilities. These virtual models allow operators to test scenarios - like adding new pick paths or induction stations - using live data before making any physical changes.

"The cost of catching a design problem in simulation is a rounding error compared to the cost of correcting it in steel and concrete." - OPSdesign

Investments in a WMS typically pay for themselves within 12 to 24 months. Additionally, enterprise-grade Wi-Fi with latency under 50ms is essential for ensuring AMRs can navigate and operate safely in real time. These tools not only improve efficiency but also align with strategic site planning for better overall performance.

Site Design and Employee Facilities

The yard layout often gets overlooked in the planning stages, but it’s critical for smooth operations. A well-designed yard should follow unidirectional flow principles and provide adequate space for truck manoeuvring. For example, standard semi-trailers need 37 metres (120 feet) of truck court depth, while 53-foot trailers require 57 metres (185 feet). High-volume drop-and-hook operations benefit from even more space - 64 metres (210 feet).

"Yard layout is not a step you do later. It is the first step, the one that locks in every other decision." - Paul LeBlanc, Owner, Van Blanc Ent. Inc.

Canadian winters add their own set of challenges. To keep operations running smoothly, dock canopies should have eave heating, and grading must slope away from dock faces to prevent ice buildup. Dedicated snow storage areas should be planned to avoid interfering with truck paths, and snow-clearing equipment needs 4.3-metre (14-foot) lanes. Fire lanes, meanwhile, must be at least 4.9 metres (16 feet) wide and extend within 45 metres of any point on the property, as per Ontario Fire Code.

Employee safety and comfort are equally important. Placing offices and welfare areas on mezzanines above low-clearance zones like packing benches can save valuable ground-level space for operations. Safety measures such as separating pedestrian and forklift zones, installing trailer restraints, and using non-slip staging areas should be standard. These small but essential details make a big difference in creating a safer and more efficient workplace.

Future-Proofing Your Distribution Centre

Planning for Flexibility and Growth

A distribution centre that meets today’s needs might not cut it tomorrow. The key to staying ahead? Build with flexibility in mind. Many facilities are now adopting what's called an "agile warehouse" approach, which focuses on adaptable internal infrastructure rather than rigid designs.

Start with a rack-agnostic floor slab. This lets you switch between various racking systems - like standard selective racks, Very Narrow Aisle (VNA) systems, or semi-automated shuttles - without major renovations. To accommodate VNA equipment and five-pallet setups, aim for column bays of at least 52×60 feet.

Clear height is another factor to plan for. Designing for 40 to 50 feet of clear height ensures your facility can handle automated storage and retrieval systems (AS/RS) in the future, even if they’re not in your current budget.

"If you're still designing to 30 or 32 feet to save steel, you're engineering a liquidity problem into your asset on day one." - Terrapin Construction Group

Don’t overlook electrical capacity. Oversizing your incoming electrical service to 4,000–6,000 amps and adding spare conduits during construction saves money in the long run. For example, retrofitting for EV charging infrastructure later could cost between $800,000 and $1.4 million. Partnering with your local utility early on ensures you’ll have the substation capacity needed as automation and fleet electrification grow.

As your operations evolve, integrating energy-efficient systems becomes another critical step in future-proofing.

Energy Efficiency and Sustainability

Energy costs often account for 10% to 15% of warehouse operating expenses. So, improving energy efficiency isn’t just good for the environment - it’s a smart financial move. Switching to occupancy sensor-based LED high-bay lighting can cut lighting energy use by 40% to 60% compared to older systems. Pair this with a Building Automation System (BAS) for centralised control of lighting and HVAC, and you’ll gain real-time insights into energy usage.

Zone-specific submetering allows you to track energy consumption by area - whether it’s loading docks, refrigerated zones, or mezzanine offices - so you can focus upgrades where they’ll make the biggest impact. Additionally, installing a solar-ready roof with the necessary structural support and electrical room capacity simplifies future solar panel installations.

Take the Lakeridge Logistics Centre in Ajax, Ontario, as an example. This 1.2-million-square-foot facility became Canada’s largest industrial property to achieve Zero Carbon Building™ (ZCB) Design certification in April 2025. Its energy-saving features include electric air-source heat pumps, a high-performance building envelope, and a solar-ready roof. These upgrades not only reduce operating costs but also prepare the facility for future carbon taxes and enhance its appeal to tenants.

"Lakeridge Logistics Centre's Zero Carbon Building Design certification demonstrates the growing demand for low-carbon industrial real estate and the business case for energy-efficient, electrified buildings." - Mark Hutchinson, Senior Vice-President, Green Building Programs & Innovation, Canada Green Building Council

Certifications like LEED® Gold or ZCB-Design™ don’t just help with carbon tax compliance; they also make your property more attractive to tenants with strict ESG requirements. Plus, certified buildings often see higher appraisals.

Working with Industrial Real Estate Experts

In the Greater Toronto Area (GTA), where industrial land is scarce and competition is fierce, finding the right site requires more than a good design - it takes expert insight. The ideal location combines clear height, power capacity, and truck court depth, but these properties often don’t make it to public listings.

Michael Law of Lennard Commercial, a specialist in industrial real estate across Toronto and the GTA, highlights the importance of market connections. Submarkets like Mississauga, Vaughan, Brampton, and Durham Region often have off-market opportunities that only experienced advisors can uncover.

When assessing a site, it’s crucial to consider more than just the base rent. Suburban net lease rates in the GTA typically range from $14–$22 per square foot in areas like Mississauga and Brampton, while urban Toronto locations can climb to $18–$28 per square foot. On top of that, operating costs - covering property taxes, insurance, and maintenance - can add another $3–$8 per square foot annually. Getting a full picture of these costs upfront is key to making an informed decision.

Conclusion: Key Takeaways for DC Design

Building a high-performing distribution centre starts with making smart, well-informed decisions early in the planning phase - long before construction begins. Elements like clear height, column spacing, floor flatness, dock configuration, and electrical capacity are fundamental to getting the design right from the outset.

As Tim Harris of Trace Consultants aptly states:

"The brief is the design. Everything else is implementation."

Getting these specifications right is non-negotiable. For example, optimizing clear height not only maximizes storage capacity but also helps prevent the facility from becoming outdated in the future. Beyond the structural basics, incorporating sustainable features - like solar-ready roofing, energy-efficient systems, and high-performance building envelopes - adds long-term value. These features not only make the facility more attractive to tenants but also prepare it for evolving carbon regulations.

Success in DC design is about more than just the physical structure. A well-rounded approach combines precise structural planning, sustainable practices, and expert market insights. Especially in competitive regions like the Greater Toronto Area, working with an experienced industrial real estate advisor can make all the difference. Advisors like Michael Law of Lennard Commercial bring invaluable expertise to the table, helping clients navigate lease renewals, acquisitions, and site selection while uncovering off-market opportunities and clarifying total site costs.

As PEB Steel wisely notes:

"The structural building decisions you make before breaking ground will determine your operational efficiency for the next 25 years."

Early, informed decisions lay the groundwork for a distribution centre that meets both current and future operational needs.

FAQs

How do I choose the best GTA location for my DC?

Choosing the right spot for your distribution centre in the Greater Toronto Area (GTA) is all about finding the sweet spot between being close to your customers and having easy access to infrastructure. For instance, you might look at Brampton if CN rail access is crucial or Mississauga if you need proximity to Pearson Airport and major highways.

Make sure the facilities you choose align with today’s standards - think clear heights of 32–36 feet - and comply with local zoning laws and Tier 1 green requirements. For expert guidance tailored to your needs, professionals like Michael Law from Lennard Commercial can help you make the best decision.

What clear height and dock ratio should I plan for?

For today's distribution centres, a clear height of 36 to 40 feet is ideal. This height accommodates automated storage systems and high-bay racking, maximizing efficiency. Plus, every extra foot of height can increase usable storage space by 7–10%.

When it comes to loading docks, aim for one dock per 5,000–10,000 square feet. If you're managing high-volume operations or cross-docking, you'll want to stick to the higher end of this range. For expert advice tailored to your specific needs, Michael Law from Lennard Commercial is a great resource.

How do I future-proof power for automation and EV charging?

To ensure your distribution centre can handle future demands, plan with scalability in mind from the start. Begin by calculating your baseline energy requirements, but don't stop there - account for growth areas like automation and fleet electrification. Slightly oversizing electrical panels now can save you from expensive upgrades later. Incorporate spare breaker capacity and additional conduits to make future expansions smoother and more cost-effective.

For EV chargers, it's a smart move to use dedicated panelboards. Modular, zone-based power distribution is another effective strategy to keep your facility adaptable as needs evolve. If you're operating in Toronto or the GTA, Lennard Commercial can assist in finding industrial properties equipped with the infrastructure to meet your long-term goals.
