Pharma Hazmat Storage: Logistics Facility Needs

• Standard Warehouses: Basic and cost-effective, but lack advanced controls for temperature, fire safety, and chemical segregation. Best for non-sensitive products.
• Temperature-Controlled Warehouses: Offer precise climate zones (e.g., cool, refrigerated, frozen) but often fall short in handling hazardous materials like flammables or corrosives.
• Specialized Hazmat Facilities: Designed for hazardous storage with features like negative pressure rooms, advanced ventilation, and strict segregation protocols. They meet stringent regulatory standards but come with higher costs.

Quick Comparison

Feature	Standard Warehouse	Temperature-Controlled	Specialized Hazmat
Temperature Control	Ambient, limited monitoring	Precise zones (±0.5°C)	Negative pressure, IoT systems
Fire Safety	Basic sprinkler systems	Enhanced suppression	Clean agents, fusible vents
Ventilation	General HVAC	Validated systems	HEPA filtration, pressure gradients
Segregation	Minimal	Thermal segregation	Chemical-specific zones
Cost (per sq ft)	$60–$150	$150–$350	Higher due to infrastructure

Key Takeaway

For hazardous pharmaceutical storage, specialized hazmat-capable facilities are the safest and most compliant option, despite higher costs. Ensure facilities meet Health Canada standards, especially for regulated activities. Location in the Greater Toronto Area offers added logistical advantages with competitive rent options.

Webinar Part 1 - Chemical and Hazardous Material Storage

sbb-itb-1862e65

1. Standard Warehouse

A standard warehouse is a familiar sight in pharmaceutical logistics, but when it comes to storing hazardous materials, these facilities often miss the mark. Built for general storage needs, they typically feature ambient temperature settings, basic fire suppression systems, and open floor plans. While they work well for many everyday pharmaceutical products, they struggle to meet the demands of hazardous materials.

Storage Controls

One major limitation of standard warehouses is their inconsistent temperature control. For instance, products stored on high-bay racks can experience temperatures 3–5°C warmer than those stored at floor level, especially during the summer months. Near loading docks, frequent door activity can push temperatures to 32°C or higher, risking breaches of the CRT (Controlled Room Temperature) range of 20–25°C.

Temperature monitoring in these facilities is often manual, with conditions logged twice per shift. This method captures only about 0.14% of the minutes in a day, leaving long gaps where temperature excursions can go unnoticed. For example, an issue starting at 6 p.m. on Friday and resolving by Saturday morning would remain undetected with such limited monitoring.

Additionally, many standard warehouses fail to calculate Mean Kinetic Temperature (MKT), a critical measure under USP 1079.2 that accounts for how heat accelerates chemical degradation. Instead, they rely on simple averages, which can lead to compliance issues. In January 2023, the FDA issued a warning to a Massachusetts facility for failing to monitor humidity alongside temperature for heat-sensitive drugs, highlighting the risks of inadequate monitoring.

These temperature inconsistencies and monitoring gaps can jeopardize compliance with strict pharmaceutical storage standards.

Fire Protection

Fire protection is another weak point. Standard warehouses often use ESFR sprinkler systems designed for ordinary combustibles, which are insufficient for handling high-intensity fires involving hazardous materials. Moreover, these facilities rarely include firewater containment bunding, meaning that runoff from fire suppression efforts could contaminate local drainage systems. This creates not just regulatory risks but also environmental liabilities. Proper hazmat storage requires fire-rated compartments and separation distances - features that standard open-plan warehouses lack.

Ventilation Systems

The HVAC systems in standard warehouses are built for general comfort, not the precise environmental controls needed for pharmaceuticals. Without multi-point sensors or seasonal thermal mapping (conducted during both summer and winter extremes), these systems can’t detect local temperature variations critical for maintaining MKT compliance under USP 1079.

Segregation Capability

Segregation in standard warehouses is usually based on temperature zones rather than chemical hazard classes. This is a significant issue for pharmaceutical hazmat storage, where materials like flammable solvents, oxidizers, and corrosives require specific separation distances and fire-rated partitions. Without structural compartmentalization, there’s a real risk of incidents spreading across incompatible materials.

These limitations highlight why standard warehouses often fall short when compared to the specialized facilities we'll explore later. Their shortcomings in temperature control, fire safety, ventilation, and segregation make them unsuitable for the unique demands of hazardous pharmaceutical storage.

2. Temperature-Controlled Warehouse

Temperature-controlled warehouses go a step beyond standard storage facilities by maintaining specific climate zones. These include Controlled Room Temperature (20–25°C), Cool (8–15°C), Refrigerated (2–8°C), and Frozen (–20°C to –70°C). Such precise conditions are critical for ensuring the stability of pharmaceutical products.

Storage Controls

One of the major challenges in these warehouses is thermal stratification, particularly in high-bay racking systems. Products stored at the top can be 3–5°C warmer than those at the bottom, creating risks of non-compliance, especially in transition zones near refrigerated rooms or ambient corridors. To maintain compliance, it's crucial to calculate Mean Kinetic Temperature (MKT) separately for each zone instead of relying on a single sensor for the entire facility.

"A warehouse that hits 32 degrees in a summer loading dock zone is producing a temperature excursion for any CRT-labeled product stored near that area, even if the excursion is brief." – envigilance.com

These thermal management issues highlight the importance of stringent fire safety protocols.

Fire Protection

Once temperature-related challenges are under control, fire safety becomes the next priority. Canadian regulations mandate sprinkler systems or specialized suppression systems for hazardous pharmaceutical materials. Additionally, areas over 10 m² must include systems to vent smoke and toxic gases. While many temperature-controlled warehouses meet basic fire code requirements, they may not align with these stricter standards.

Ventilation Systems

Pharmaceutical products that emit flammable vapours or toxic gases need dedicated exhaust systems to ensure these substances don't recirculate indoors. Standard HVAC systems in these warehouses are primarily designed for climate control and aren't equipped to handle chemical off-gassing. Regular monitoring of pressure differentials between storage and non-storage areas is essential to prevent cross-contamination. Ventilation ducts must adhere to NFPA 91 clearance standards, and main access aisles should be 2.4 m to 3.6 m wide, depending on storage height and sprinkler configurations.

Segregation Capability

Temperature-controlled warehouses generally focus on thermal segregation, but this approach isn't sufficient for hazardous pharmaceutical products. Flammable solvents, oxidizers, and corrosives must be separated based on chemical incompatibility, not just temperature. Canadian regulations require incompatible dangerous goods to be stored in separate fire compartments, with some requiring at least 1 m of horizontal separation. Storage height limits are also strictly defined by Packing Group classifications and whether the area is sprinklered.

Packing Group	Unprotected Storage	Protected (Sprinklered) Storage
Packing Group I	1.8 m	2.4 m
Packing Group II	2.4 m	4.0 m
Packing Group III	4.5 m	6.0 m

Without structural compartmentalization tailored to specific chemical hazard classes, temperature-controlled warehouses can maintain climate conditions effectively but often fall short when it comes to proper chemical segregation.

3. Specialized Hazmat-Capable Logistics Facility

When it comes to hazardous pharmaceutical storage, safety measures go far beyond those of typical or even temperature-controlled facilities. These specialized hazmat facilities are designed with features like negative pressure systems, advanced ventilation, and strict segregation protocols to handle the unique challenges posed by hazardous materials. Every detail, from airflow design to shelving configurations, is carefully designed to reduce risks.

Storage Controls

One of the most crucial features in these facilities is pressure control. Hazardous drugs (HDs), such as antineoplastic agents, must be stored in negative-pressure rooms that are externally ventilated and maintain at least 12 air changes per hour (ACPH).

"Antineoplastic HDs... must be stored in an externally ventilated, negative-pressure room with at least 12 air changes per hour (ACPH)." – USP General Chapter <800>

For refrigerated hazardous drugs, specialized medical-grade refrigerators are required within these negative-pressure environments. Proper exhaust systems ensure that the air remains safe and controlled. Raised shelving with front lips prevents accidental spills or container falls, while IoT monitoring systems provide real-time updates to maintain environmental stability.

Fire Protection

Fire protection in hazmat facilities is a step above standard systems. Clean agent suppression systems are commonly used because they release non-conductive and non-corrosive agents, which suppress fires without damaging sensitive pharmaceutical products. Fire alarms in these facilities must comply with both NFPA 45 and NFPA 72 standards for early detection. Additionally, Health Canada's Good Manufacturing Practices (GMP) require facilities to maintain a detailed Site Master File (SMF) outlining storage layouts for highly toxic or hazardous materials.

"The pharmaceutical industry often deals with a wide range of chemicals, some of which may react unpredictably when combined. Fire risks increase when incompatible substances come into contact." – Viking Fire Protection

Ventilation Systems

Ventilation systems in hazmat facilities are another critical safety feature. These advanced HVAC systems act as the first line of containment, ensuring that hazardous contaminants do not accumulate. Strategic placement of return grilles and careful room design prevent stagnant air pockets where contaminants might linger. HEPA filters, which are 99.97% efficient at filtering particles as small as 0.3 µm, work alongside automated isolation dampers to contain contaminated air during system failures. According to ISO 14644-4, maintaining differential pressures between 5 and 20 Pa between zones is key to ensuring a proper pressure gradient. Ventilation performance is also rigorously tested under real-world conditions.

Segregation Capability

Effective segregation is another cornerstone of hazmat facility design. These facilities use pressure cascades and airlocks to create both physical and atmospheric barriers between hazardous zones and general logistics areas. Anterooms further protect containment integrity by separating clean spaces from those that could be contaminated.

Health Canada's GMP guidelines require dedicated zones for storing highly toxic or sensitizing materials. Facilities handling controlled substances or certain biological products must also secure the necessary Health Canada licences and CFIA certifications. This multi-layered approach ensures that hazardous materials are stored and handled safely, overcoming the limitations of more conventional warehouses.

For pharmaceutical logistics operators in the Greater Toronto Area, Lennard Commercial – Industrial Real Estate Services can help identify and secure facilities tailored to these stringent hazardous material and pharmaceutical storage requirements.

Pros and Cons of Each Facility Type

This section delves into the trade-offs between different facility types, building on the earlier detailed reviews. These comparisons are heavily influenced by the need to comply with Health Canada's GMP regulations, which directly impact storage options, operational demands, and overall costs.

Each facility type offers distinct advantages and limitations depending on storage requirements, regulatory standards, and the complexity of operations.

Standard warehouses are the most affordable option, with construction costs ranging from $60 to $150 per square foot. They're ideal for ambient storage of non-sensitive over-the-counter (OTC) products that need to be kept at 20–25°C. Compliance is relatively straightforward here, adhering to USP <659> and basic Good Warehousing Practice (GWP). However, they lack the strict environmental controls and containment measures required for hazardous materials.

Temperature-controlled warehouses cater to most pharmaceutical needs, offering validated environmental monitoring with accuracy to ±0.5°C and seasonal temperature mapping. These facilities meet USP 1079 and WHO Annex 9 standards. While they bridge the gap between standard and specialized facilities, they may not suffice for high-risk materials like flammable APIs or radiopharmaceuticals, which need advanced containment and fire protection measures.

Specialized hazmat-capable facilities are at the top of the spectrum in both performance and cost. They are designed to meet stringent requirements for biologics, narcotics, and radiopharmaceuticals, adhering to Health Canada and FDA 21 CFR 211.142 regulations. However, these facilities require significant investment in specialized infrastructure, regulatory licensing, and ongoing compliance measures.

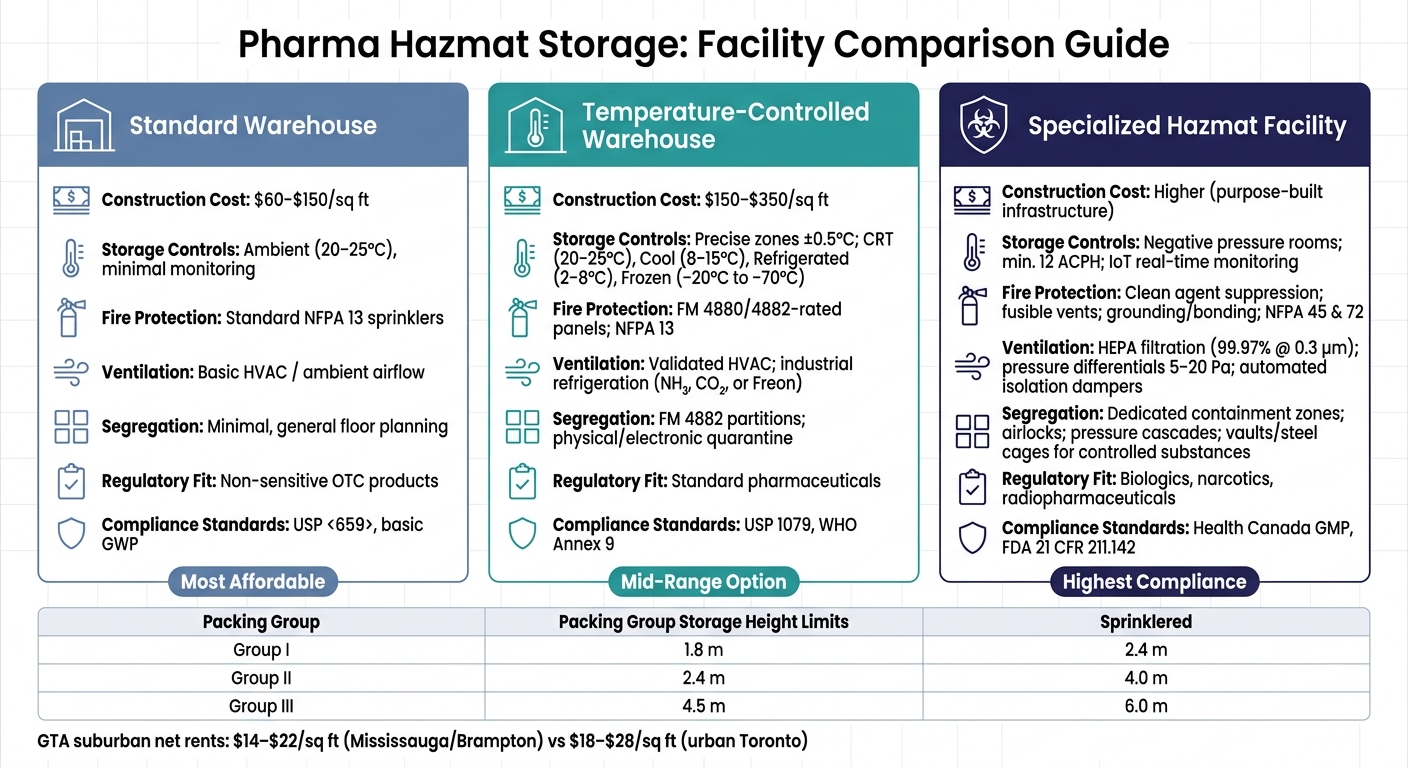

Here’s a quick comparison of the key features across these facility types:

Feature	Standard Warehouse	Temperature-Controlled	Specialized Hazmat
Storage Controls	Ambient (20–25°C); minimal monitoring	Precise temperature/humidity controls; sensors accurate to ±0.5°C	Negative pressure; advanced security measures
Fire Protection	Standard NFPA 13 sprinklers	FM 4880/4882-rated panels; NFPA 13	Fusible vents; grounding/bonding systems
Ventilation	Basic HVAC or ambient airflow	Industrial refrigeration (NH₃, CO₂, or Freon); validated HVAC systems	HEPA filtration; pressure differentials of 5–20 Pa
Segregation	Minimal; general floor planning	FM 4882 partitions; physical/electronic quarantine	Dedicated containment zones; vaults or steel cages for controlled substances
Regulatory Compliance	Non-sensitive OTCs	Standard pharmaceuticals	Biologics, narcotics, radiopharmaceuticals
Construction Cost	$60–$150/sq ft	$150–$350/sq ft	Higher due to specialized infrastructure

"Drug storage is not a licensable activity and a company that only stores drugs does not need to hold a DEL. However, the storing of the drug is an integral part of regulated activities and companies that fabricate, import, package/label, test, distribute or wholesale drugs must list all Canadian buildings where they store drugs on their DEL." – Health Canada, Guidance on Drug Establishment Licences (GUI-0002)

While standalone storage may not require a Drug Establishment Licence (DEL), the facility must still meet the obligations tied to regulated activities it supports. Balancing these trade-offs is crucial when deciding on the most suitable facility for your needs.

Conclusion

Facilities designed for handling hazardous materials offer a combination of integrated cGMP compliance, strict environmental controls, and essential safety features. These include NFPA-compliant flammables storage rooms and ESFR sprinkler systems, all aligned with Health Canada protocols.

While specialized facilities clearly stand out, it’s worth considering the limitations of conventional options. Standard and temperature-controlled facilities might provide some benefits, but they fall short of meeting the stringent requirements for hazardous pharmaceutical storage. Retrofitting a Class B or C building to include fire suppression, HVAC, and containment systems often exceeds the cost of leasing a purpose-built Class A facility.

In the Greater Toronto Area (GTA), location plays a pivotal role alongside facility design. As a major distribution hub with nearly half of Canada’s population within a day’s drive, the GTA offers strategic advantages. Suburban areas like Mississauga and Brampton provide excellent highway access via Hwy 401/407 and proximity to Pearson International Airport. Additionally, net rents in these areas typically range from $14 to $22 per square foot, compared to $18–$28 per square foot in urban Toronto.

Before committing to a lease, ensure the facility holds ISO 9001:2015 certification and adheres to cGMP/GDP protocols. Verify that it has sufficient electrical capacity for continuous refrigeration and HVAC systems. If the facility is involved in regulated activities, confirm that it is listed on your Drug Establishment Licence (DEL).

For tailored assistance in finding compliant facilities in Toronto and the GTA, Lennard Commercial – Industrial Real Estate Services offers expert guidance. Michael Law and his team bring extensive local market expertise to help you secure facilities that meet the technical, logistical, and cost criteria discussed in this article.

FAQs

When do I need a specialized hazmat facility instead of a temperature-controlled warehouse?

When dealing with regulated hazardous materials - like flammable, corrosive, or toxic substances - a specialized hazmat facility is a must. These facilities are designed with critical safety features, including fire-rated construction, spill containment systems, and explosion-proof ventilation. These measures ensure compliance with safety regulations while protecting both people and the environment.

What compliance documents should I verify before leasing pharma hazmat storage in Canada?

Before leasing pharma hazmat storage in Canada, it’s crucial to ensure everything aligns with the Transportation of Dangerous Goods Regulations. This includes proper classification, labelling, and the use of accurate safety marks for hazardous materials.

You’ll also need to follow Good Manufacturing Practices (GMP) guidelines. These are essential for maintaining quality and safety in pharmaceutical storage. Additionally, make sure you meet Health Canada’s requirements for drug establishment licensing and GMP inspections.

Finally, double-check that all documentation complies with regulatory standards. This step is key to avoiding potential compliance issues down the road.

What building features most reduce risk for flammables, corrosives, and toxic drugs?

When storing flammable, corrosive, or toxic drugs, certain building features are essential to minimize risks. These include:

• Approved flammable storage cabinets: Designed to safely contain flammable materials and reduce fire hazards.
• Corrosion-resistant shelving: Prevents damage from corrosive substances, ensuring long-term durability and safety.
• Segregated storage areas: Keeps incompatible materials apart, reducing the potential for dangerous reactions.
• Proper ventilation: Maintains air quality and prevents the build-up of toxic fumes.
• Spill containment systems: Helps manage accidental leaks or spills, limiting exposure and contamination.
• Temperature control: Prevents chemical degradation or instability by maintaining appropriate storage conditions.

These features work together to create a safer environment for handling and storing hazardous pharmaceutical materials while meeting compliance standards.
